"Durchschnitt eines Capital Krieg-Schiffs…", Weigel, Christopher
Period: 1717 (published)
Color: Hand Color
15.5 x 12.7 inches
39.4 x 32.3 cm

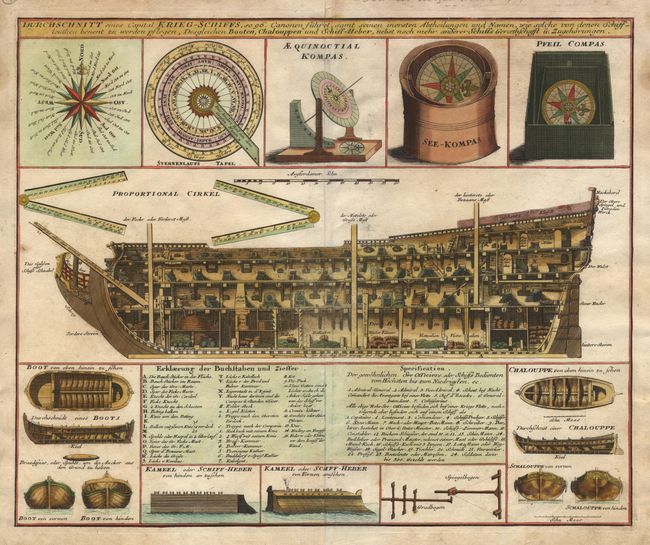

Superb engraving of marine architecture featuring a three-masted 96 gun man-o-war. The rendering provides great detail of the ship's equipment, construction, rigging, etc. The main engraving is a large and extraordinarily detailed cutaway view. Surrounding insets include cross-section views, ribbing and planking details, compass and astrolabe detail, dry docks, etc.
A bit of minor foxing, overall very good with old color.
